Warning: We provide no technical support beyond this web page. If you attempt this procedure we will not assist you in any way, either on the phone or by e-mail. Proceed at your own risk!


Remove the 2 screws on the back of the pager.

Open the pager like a clam shell. It is hinged on the side opposite the battery.

Remove the vibrator by pulling straight up.

Orient the vibrator as shown below in the new housing.

Remove the circuit board from the front housing.

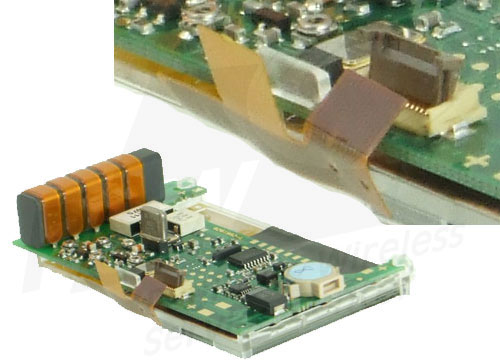

Lift up on the dark brown connector to release the LCD connector tab.


Release the LCD assembly from the circuit board by pulling on the clear plastic tab shown below.

Remove the LCD from the circuit board. Re-attach the new LCD and assemble the pager in the reverse order.

Warning: We provide no technical support beyond this web page. If you attempt this procedure we will not assist you in any way, either on the phone or by e-mail. Proceed at your own risk!
